Repairs: After 234’000km, a few things needed attention – Part 1

Prior to any TWIKE adventure, I usually take my TWIKE to an official TWIKE service centre to have a general check-up. This ensures that the chance of being left stranded somewhere far away is low.

After discovering a slight problem with my steering swing assembly, I had an urgent reason to go to Andi from Ksenotek and have the assembly replaced besides my usual check-up and getting some new tyres.

Furthermore, TW560 had started to develop a very annoying squeak when recuperating – not breaking – leading me to suspect some damage to the gear drive assembly.

And, as always, the check-up could yield other parts in need of replacement…

But first things first:

Steering swing replacement (…a part that definitely needs replacement)

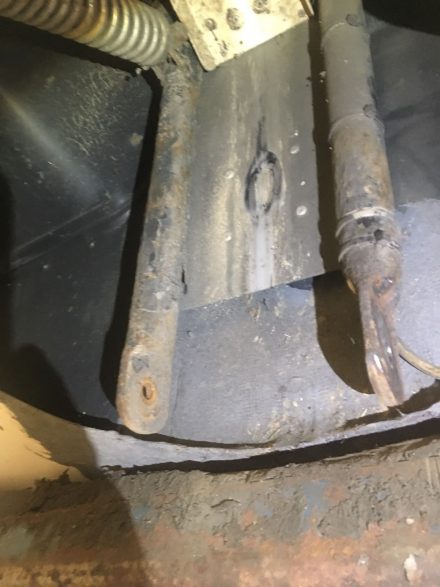

Bolt sawn through and middle ready for dismantling

Bolt sawn through and middle ready for dismantling

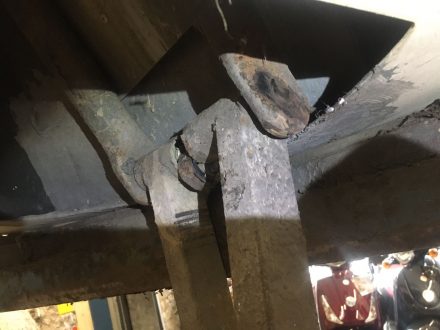

TW560’s steering swing bolt would not budge and Andi wanted to save some time, so he decided to cut through the axle and bolt.

Ready for a new swing assembly

Ready for a new swing assembly

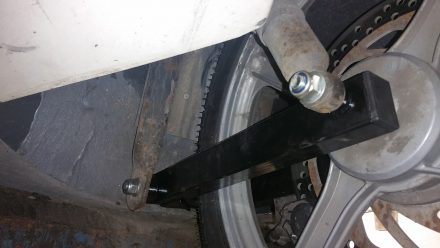

Quickly, TW560’s old swing was removed and the new one was put in place.

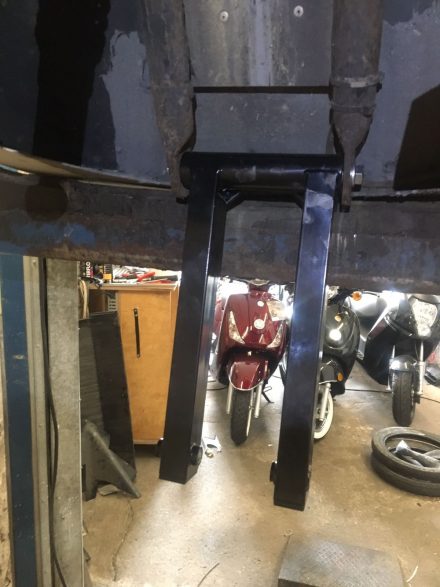

New assembly in place

New assembly in place

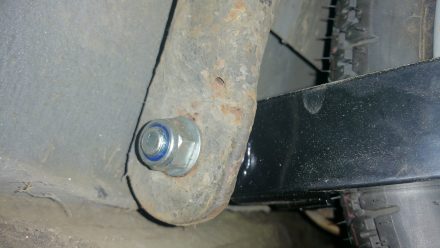

Re-assembly of front axle with new swing.

Fully re-assembled swing assembly II

Fully re-assembled swing assembly II

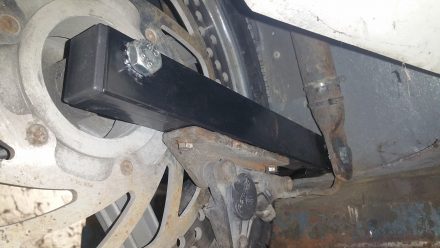

Fully re-assembled swing assembly

Fully re-assembled swing assembly

Old vs. new

Old vs. new



Time to have a quick look at the old swing and its lack of metal 🙂

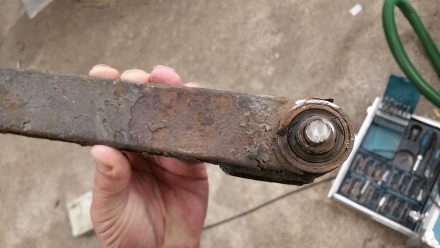

Old assembly with sawn-off bolt

Old assembly with sawn-off bolt



How much metal was there for an emergency brake manoeuvre?

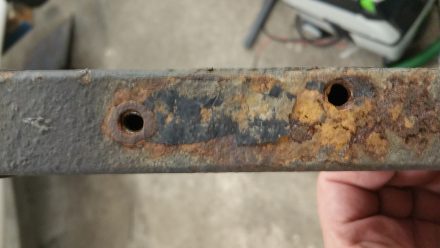

Break shoe mount points

Break shoe mount points



This is the part of my steering swing I definitely wanted to replace!

Under 1mm rust...more rust!

Under 1mm rust…more rust!



Touching the rust on the swing’s axle made it very clear that this replacement was very important: No metal left – everything’s just rust.

Happy that with this repair, I can continue to go on trans-European TWIKE adventures with confidence!
