TW560 accident damage assessment

My accident was on a late evening driving back home from an event.

I flipped TW560 whilst avoiding a neighbor’s cat, then crossed my neighbor’s front garden suspended in a flipped-over TWIKE and came to a shuddering stop at her house’s wall – all whilst suspended at 130° sideways.

Since the distance back home wasn’t too far, after performing some basic self-checks and extracting myself from the vehicle, I put TW560 back on its wheels and just pushed it back the last few 100 metres.

Back home, feeling shaken and slightly under shock, I initially didn’t care too much about TW560 to check the amount of damage that had been sustained that evening.

Instead, I poured myself a stiff drink and and asked my wife to do a basic check-up on me since I had quite a few abrasions, was wobbly on my legs and generally felt unwell. She concluded that I was under shock, would be black and blue all over but hadn’t sustained any whiplash or other injuries…and poured me another drink.

Next morning, however, I was back to normal and went outside to inspect in which state TW560 was:

Oh my!

Oh my!

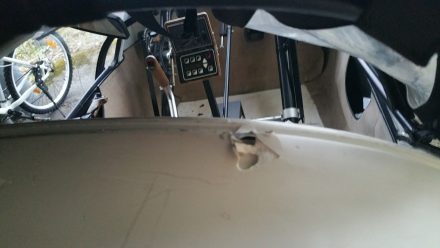

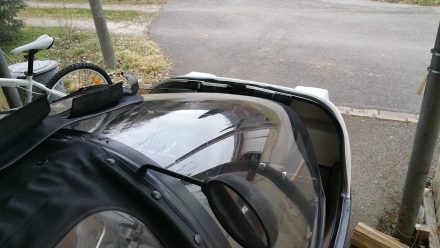

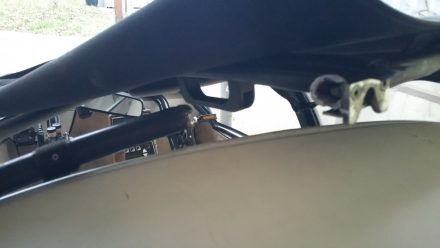

An extremely warped canopy with both bolts holding it on the chassis sheared off.

Everything seemed strangely warped even if the highly flexible white Luran plastic seemed to be mostly OK.

Will this be repairable?

Will this be repairable?



That said, there were other places where the plastic was visibly damaged.

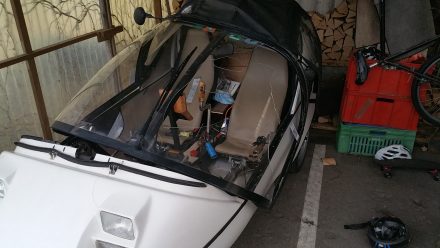

Massive damage everywhere

Massive damage everywhere



The most visible damage was to the canopy – it even broke in several places.

Everything is twisted and broken

Everything is twisted and broken

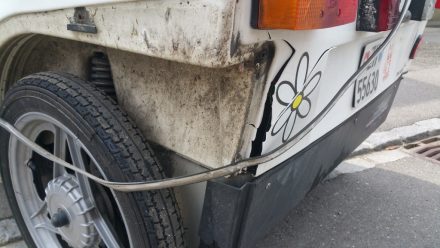

Looking from behind, it becomes clear that TW560 has sustained massive internal damage. Most of the right part of TW560’s Spaceframe has been pushed back by 2-5cm and large cracks in the upper and lower battery bay elements are painful proof that most of my TWIKE is irreparably broken.

Spaceframe moved back by 2cm and crushed battery bay

Spaceframe moved back by 2cm and crushed battery bay

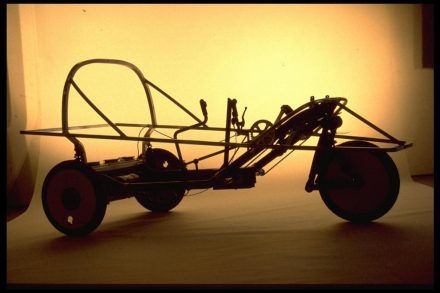

Just as a reminder: This is what a TWIKE looks like when you strip the Luran plastic away:

The Spaceframe

The Spaceframe



The frame is designed to be strong enough to protect a pilot against roll-overs and low-speed collisions and is designed to yield and deform in order to absorb energy whilst being as light as possible. Genius design.

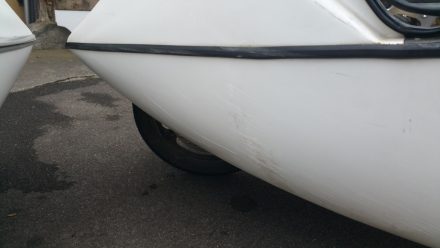

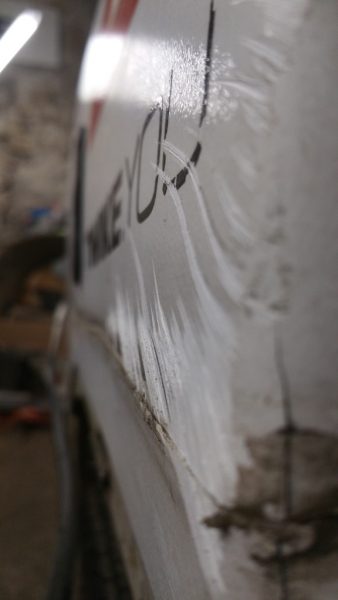

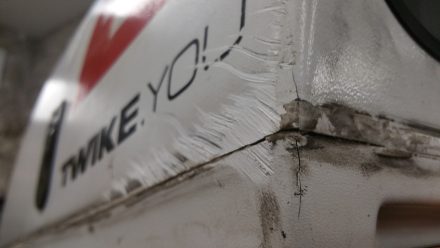

Anything not broken is badly scratched

Anything not broken is badly scratched



Looking at my TWIKE, I’m not quite sure if there is any way to have it repaired at all.

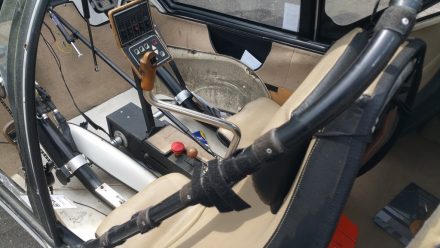

Looking into the TWIKE, the forces of rolling-over with me in the seat have even made the seat crack and warp the seat’s frame!

Everything is bent and broken

Everything is bent and broken



Weirdly, even the super-light inside panels and battery bay cover came off.

Trying to stay positive, one of the things I saw, was that the main black vehicle frame looked unharmed. It was easy to determine which parts had sustained forces: paint was peeling off them. (lots of places)

Maximum destruction

Maximum destruction

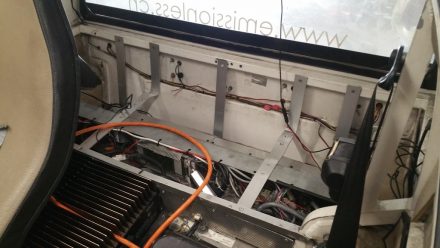

Looking further inside, the forces which were exerted on many parts must have been very large – just look at the horizontal battery bay struts: wavy metal is always a bad sign 🙁

Massive forces were at work - bent metal everywhere

Massive forces were at work – bent metal everywhere



I dig further into the details and am more and more distraught.

My beloved vehicle!

My trusted travel companion.

The thing people know me for (really… in and around my village I’ve had following conversation many times: who are you? I’m the guy with that strange white three-wheeler – Oh, yes, I’ve seen you many times – nice to meet you! Can I come on a test drive sometime?)

Has it just died forever?

…if not – what will it cost to get it back to working order?

Arrgh - This hurts!

Arrgh – This hurts!

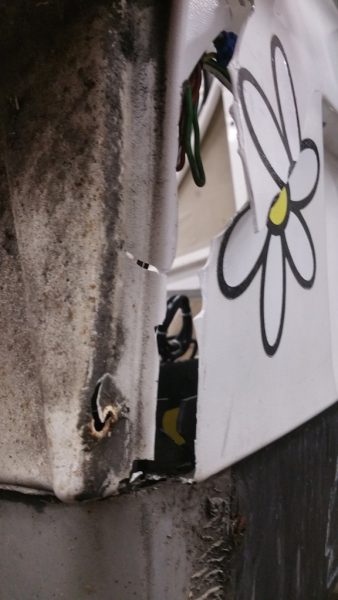

Much of the material is gone - many cracks

Much of the material is gone – many cracks



I call Andreas from Ksenotek to collect my TWIKE and check it out himself. I need an exact estimate of the damage and how much it would cost to get it back to some kind of working order.

Andi is shocked himself as he sees what he calls ‘the best-maintained TWIKE ever’.

He starts to dissect the remains and sends me regular pictures of what he is currently assessing.

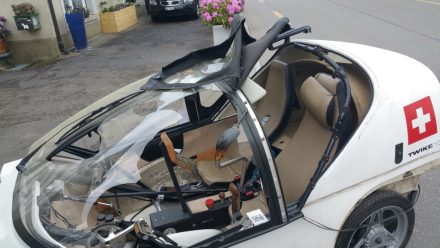

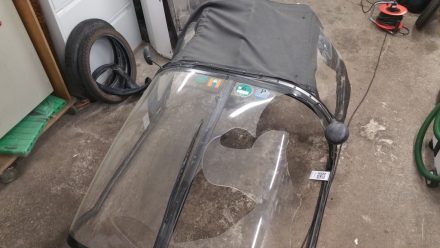

Broken canopy and windscreen

Broken canopy and windscreen



The pictures don’t get any better.

And his first estimate of CHF 10,000+ is gradually corrected upwards with every day he pours over the damage.

Maximum destruction

Maximum destruction



I tell Andreas to give me a minimum, workable, comfortable and maximum estimate for my repairs as a basis for my negotiations with my insurer. I’m well aware that my vehicle with 240,000km and nearly 20 years of age is outside of any comprehensive coverage by any insurer. Especially given the fact that I was enjoying an exceedingly low yearly insurance premium.

Side-view

Side-view



After more than a week, Andi concludes that my repairs will be somewhere in the region of 15,000-30,000 CHF depending on the options we choose – any result will be the same as what I’ve got now, no frills. The variance just considers the amount of unknowns he factors into the repairs.

In any case, TW560 needs a new space frame, a new Luran cover and many, many more parts and lots of work (which is the expensive part in Switzerland).

More info to follow. (I’m seriously considering a GoFundMe campaign to cover my costs) If you feel like you’d like to contribute, please click here.
